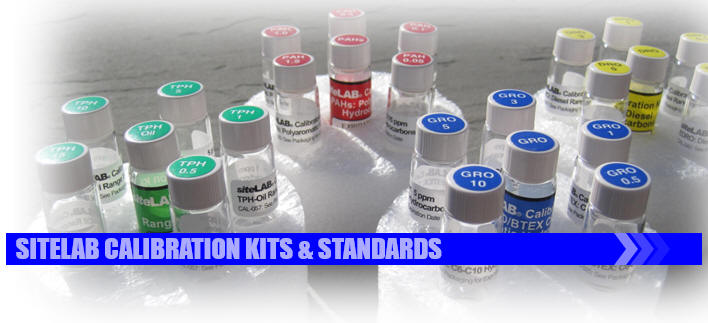

UVF-Trilogy
Calibration Kits
Available:
|
Sitelab's standards are made from Certified
Reference Materials (CRMs) and are used to perform
calibration checks for quality control or to recalibrate the analyzer, if necessary.
These products are specially formulated to ensure accurate measurement and produce results that
correlate well to U.S. EPA and other regulatory lab methods.
Each kit includes
5 calibration standards, plus 2 reference standards and supplies
used as a backup to prepare new calibration standards, if necessary.
The calibration standards are reusable and supplied with a 6-month
expiration date. Copy of Certificate of Analysis, MSDS and
calibration instructions are included.
These
products are easy to use and are always in stock. Available in methanol
or hexane solvents. Scroll down this page to see these and
other calibration
products available.
|
|
|
|
GRO
|
GASOLINE RANGE
ORGANIC HYDROCARBONS
Part No. CAL-025M
● In Methanol for Soil Analysis
Part No. CAL-025H
● In Hexane for Water Analysis
Use to detect BTEX
and other volatile petroleum hydrocarbons in the C6 to C10 gasoline
range. Common applications include gasolines, jet fuels, fuel oils
and other light-refined hydrocarbons.
Minimum detection limit = 0.5 ppm.
|
|
Use with Sitelab's UVF-Trilogy
GRO UV
fluorescence module
Click images to enlarge:
Use for soil and water analysis! |
Download:
GRO CALIBRATION INSTRUCTIONS
|
Go To:
GRO APPLICATIONS
|
|
|
|
|
EDRO
|
EXTENDED DIESEL RANGE
HYDROCARBONS
Part No. CAL-042M
● In Methanol for Soil Analysis
Part No. CAL-042H
● In Hexane for Water Analysis
Use to detect petroleum hydrocarbons in the C10 to C36 diesel and
oil range. Common applications include heating oils, diesel fuel,
waste oils, lube oils, crude oils and many other types of petroleum.
Minimum
detection limit = 0.1 ppm.
|
|
Use with Sitelab's UVF-Trilogy
EDRO UV
fluorescence module
Click images to enlarge:
Use for soil and water analysis!
|
Download:
EDRO CALIBRATION INSTRUCTIONS
|
Go To:
EDRO APPLICATIONS
|
|
|
|
|

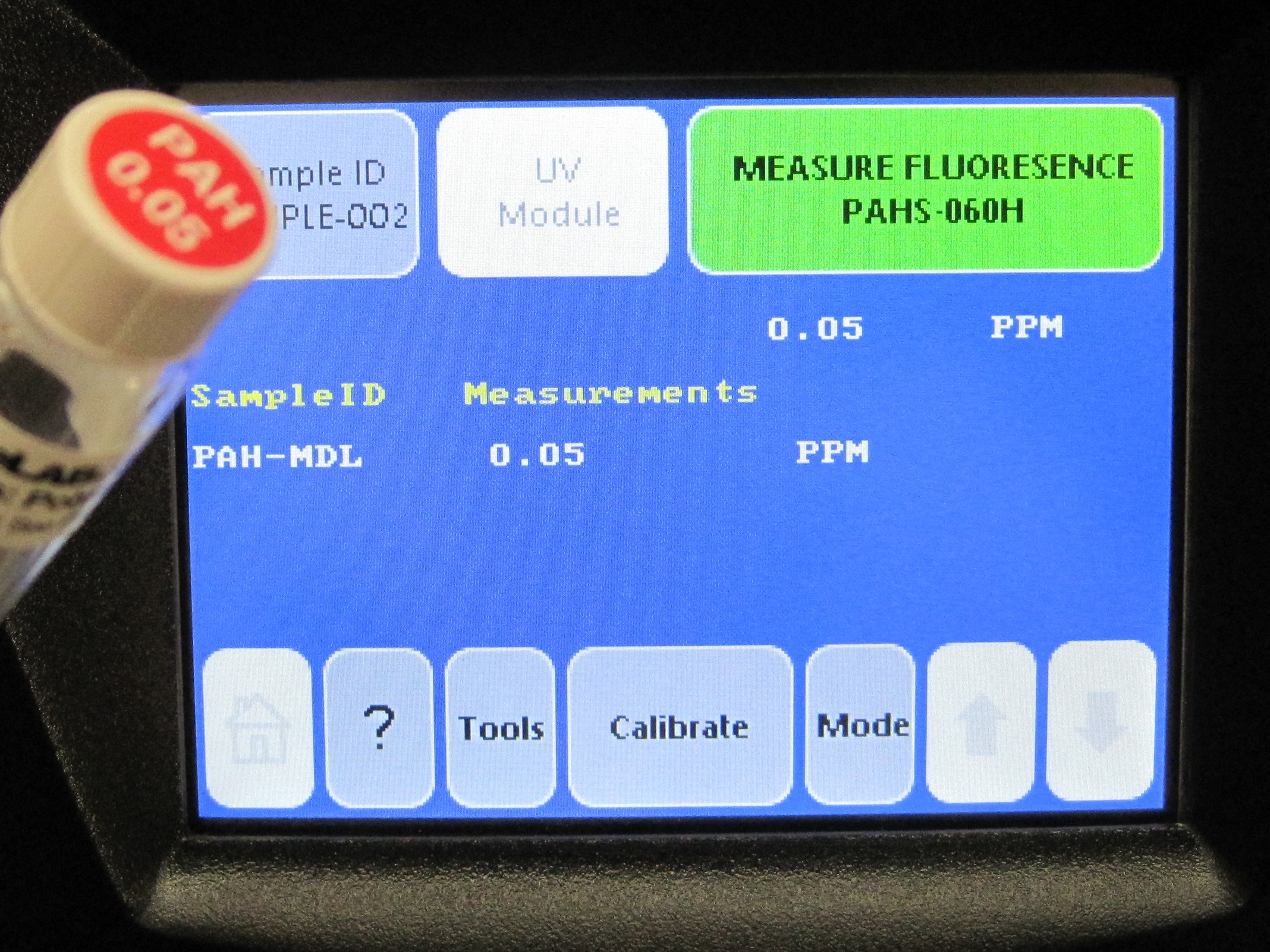

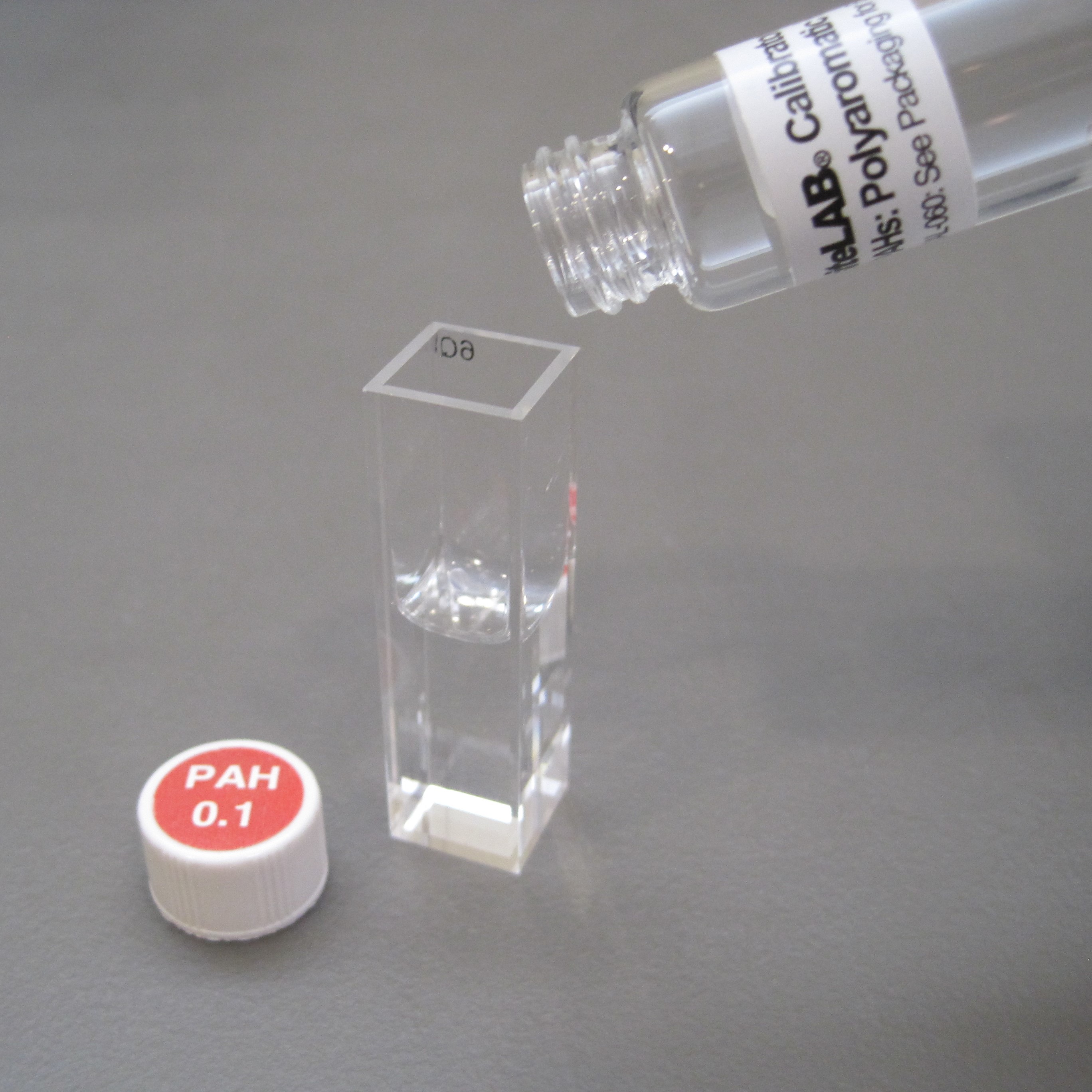

PAHS
|
POLYCYCLIC AROMATIC
HYDROCARBONS
Part No. CAL-060M
● In Methanol for Soil Analysis
Part No. CAL-060H
● In Hexane for Water Analysis
Use to detect Target PAHs as the sum of U.S. EPA's priority
pollutant compounds in fuel oils, waste oils, crude oils, creosote,
coal ash, coal tar, asphalt and other contaminants. Or use for
hydrocarbon fingerprinting testing
Total PAHs and Heavy PAHs with the EDRO and TPHOIL modules. Minimum detection limit = 0.05 ppm.
|
|

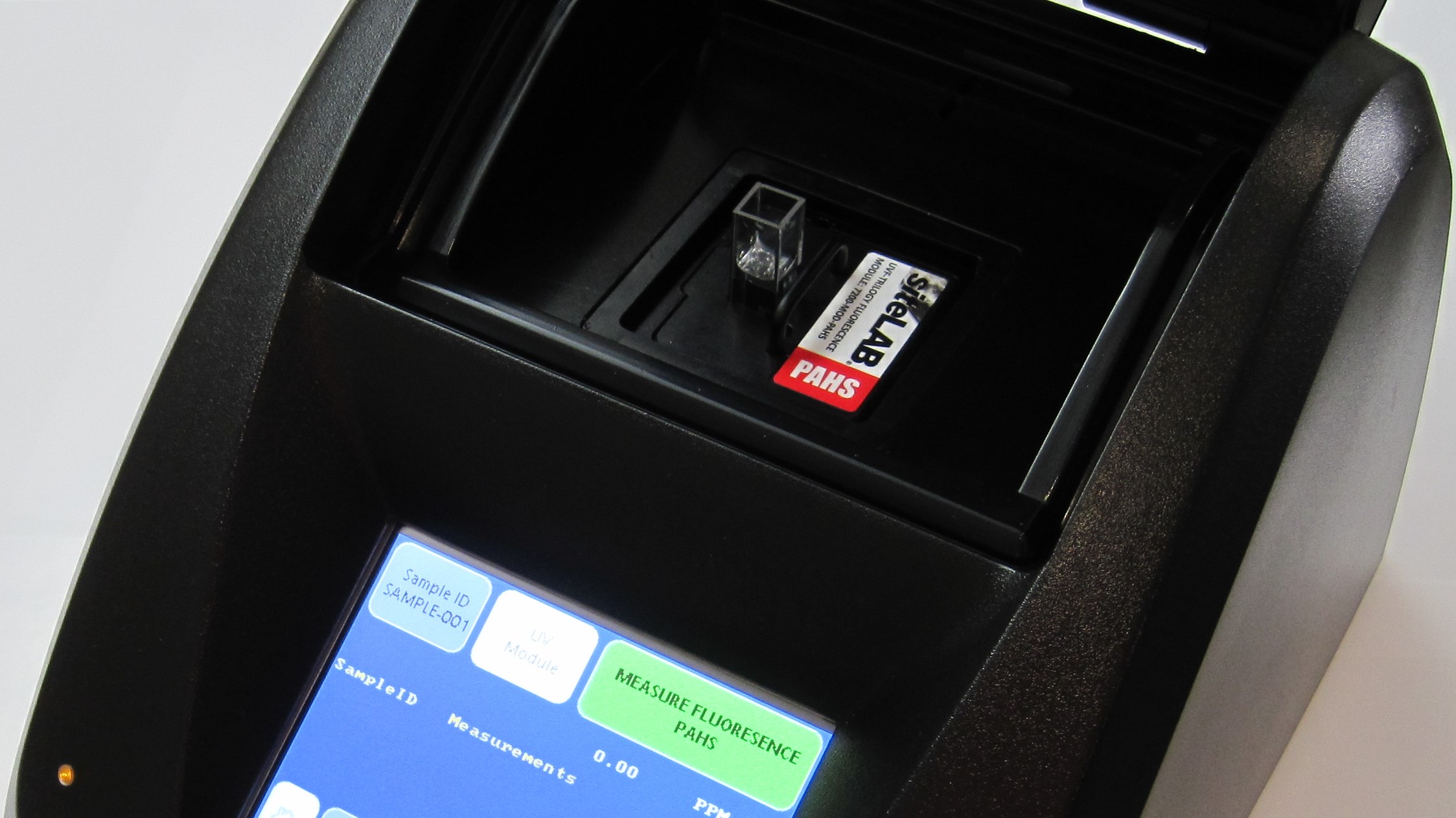

Use with Sitelab's UVF-Trilogy
PAHS UV
fluorescence module
Click images to enlarge:
Use for soil and water analysis!
|
Download:
PAH CALIBRATION INSTRUCTIONS
|
Go To:
PAH APPLICATIONS
|
|
|
|
|
TPH OIL
|
TPH OIL RANGE
hYDROCARBONS
Part No. CAL-057M
● In Methanol for Soil Analysis
Part No. CAL-057H
● In Hexane for Water Analysis

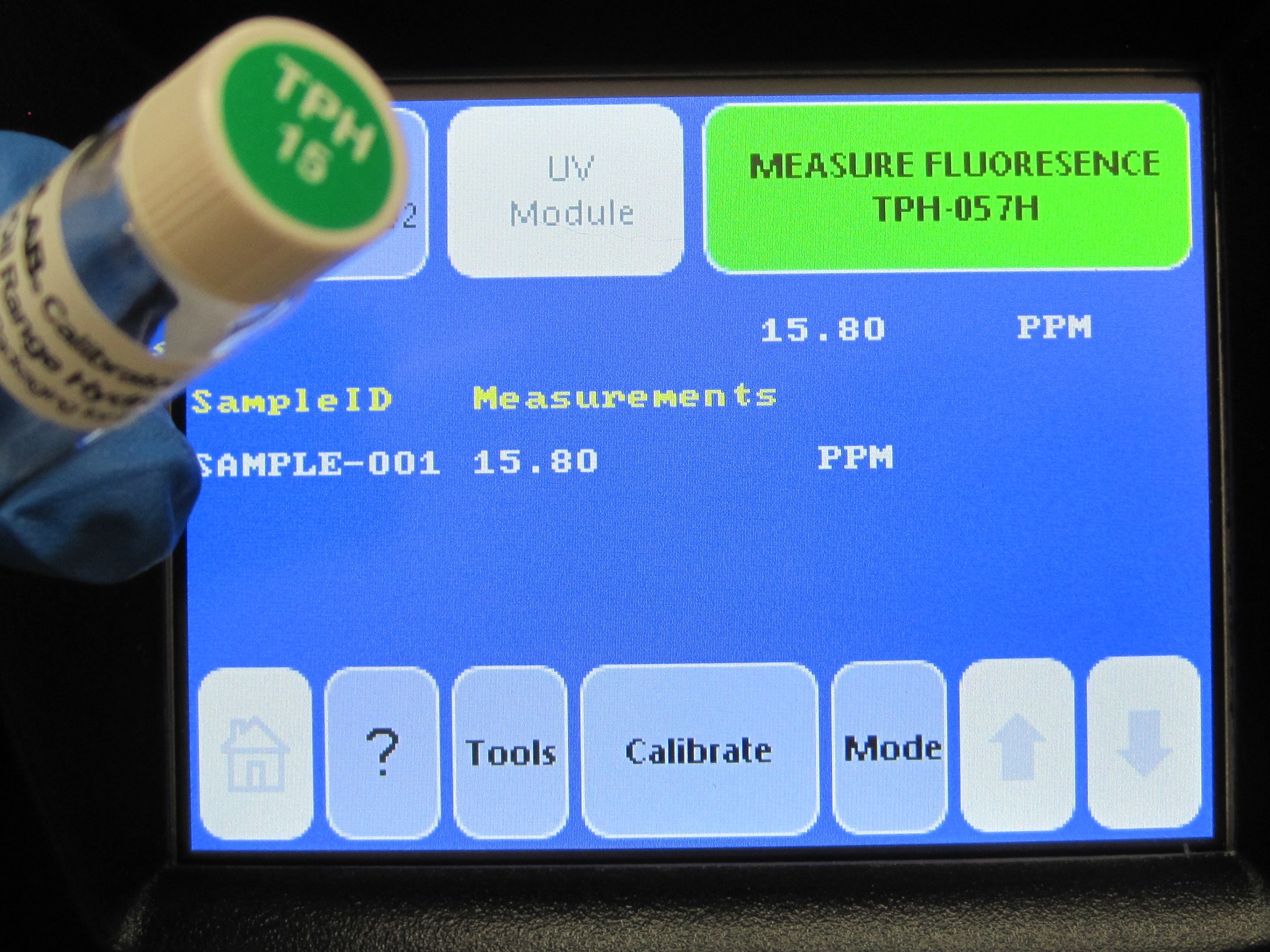

Use to detect Total
Petroleum Hydrocarbons in the C15 to C50 "oil and grease" range. This
test compares well to EPA Method 1664 and other Gravimetric or GC
methods for detecting crude oils and heavy fuel oils.
Minimum
detection limit = 0.5 ppm.
|
|
Use with Sitelab's UVF-Trilogy
TPHOIL UV
fluorescence module
Click images to enlarge:

Use for soil and water analysis!
S
|
Download:
TPH OIL CALIBRATION INSTRUCTIONS
|
Go To:
TPH OIL APPLICATIONS
|
|
|
|
|

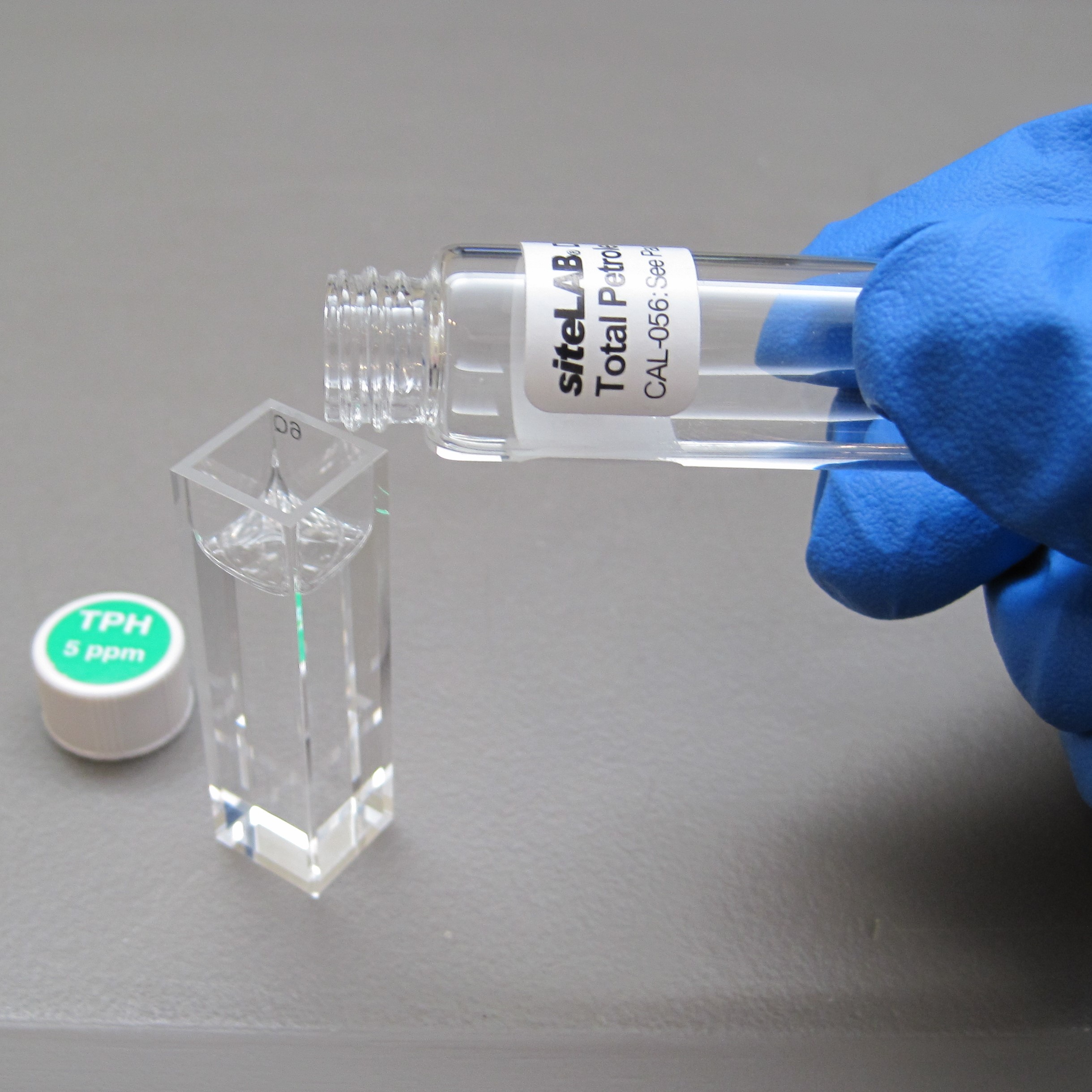

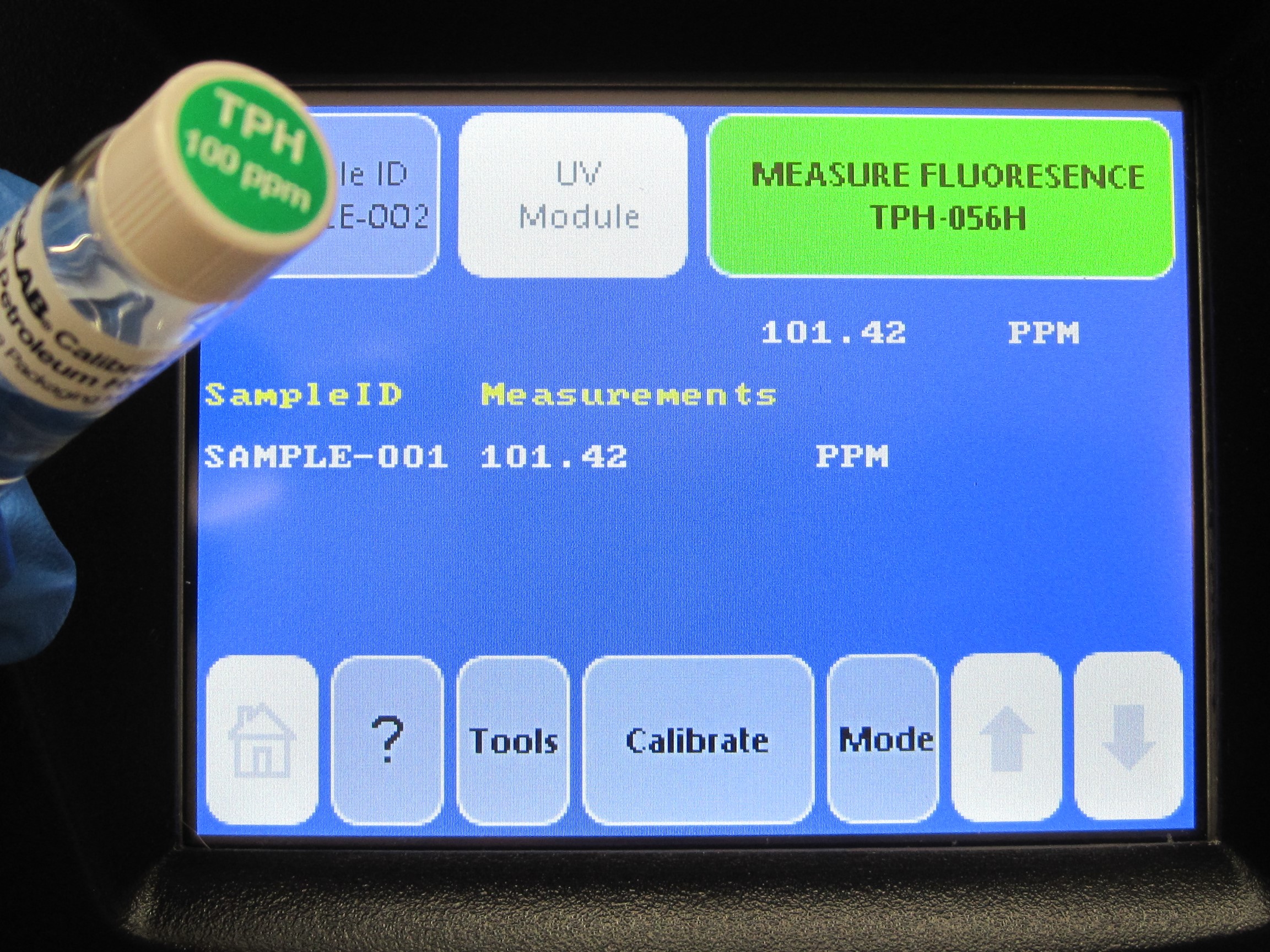

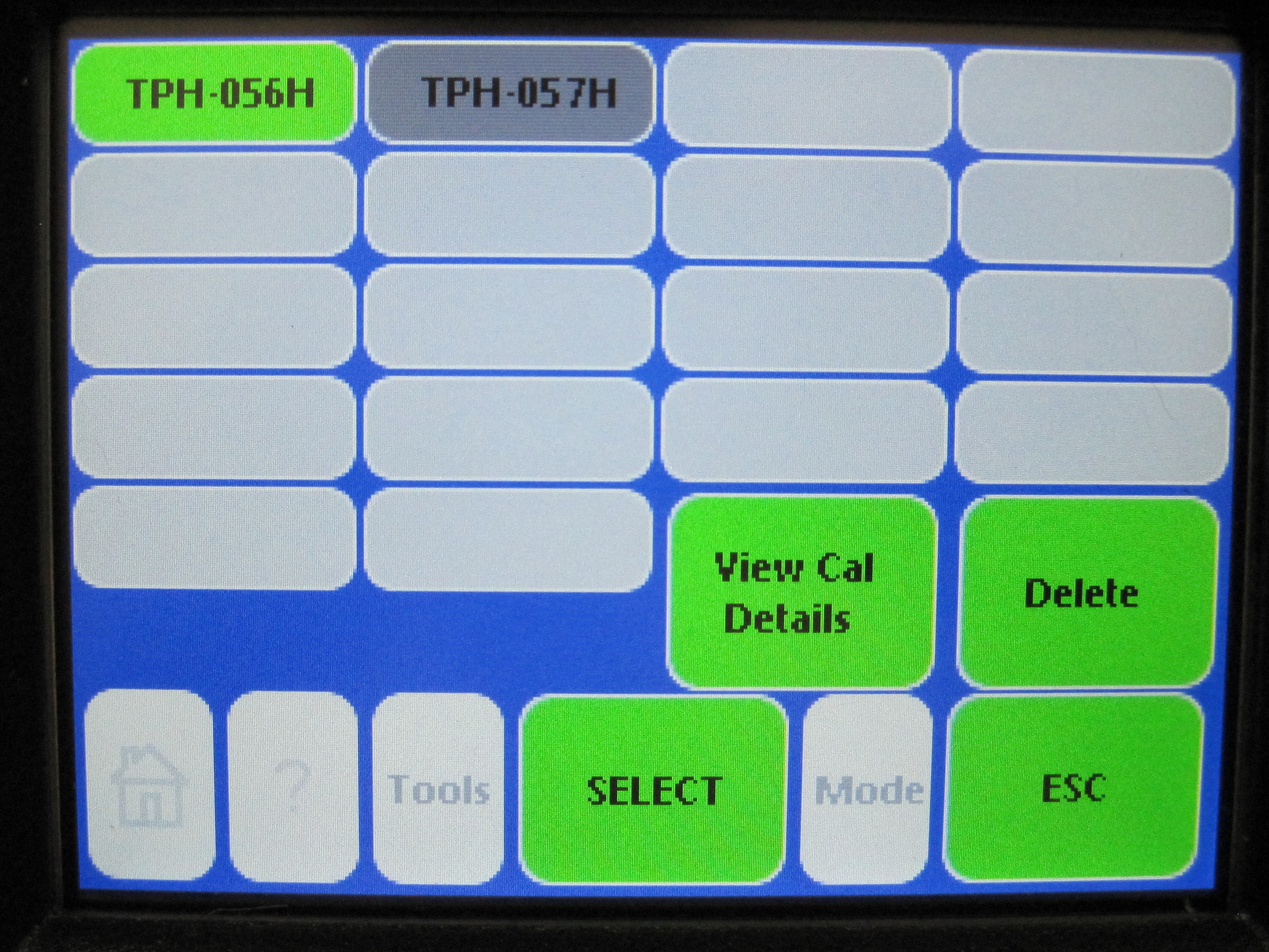

TPH OIL, High
|
TPH OIL RANGE, HIGH
CONCENTRATIONS
Part No. CAL-056M
● In Methanol for Soil Analysis
Part No. CAL-056H
● In Hexane for Water Analysis
Same as Sitelab's CAL-057M and CAL-056H calibration kits, but at higher
concentrations up to 100 ppm, requiring no or fewer dilutions needed
for analysis. Minimum detection
limit = 5 ppm.
|
|
Use with Sitelab's UVF-Trilogy
TPHOIL UV
fluorescence module
Click images to enlarge:
Use for soil and water analysis
S
|
|
Download:
TPH OIL CALIBRATION INSTRUCTIONS |
Go To:
TPH OIL APPLICATIONS
|
|
|

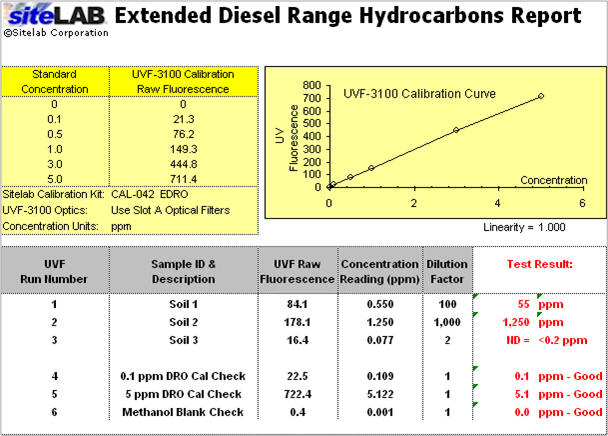

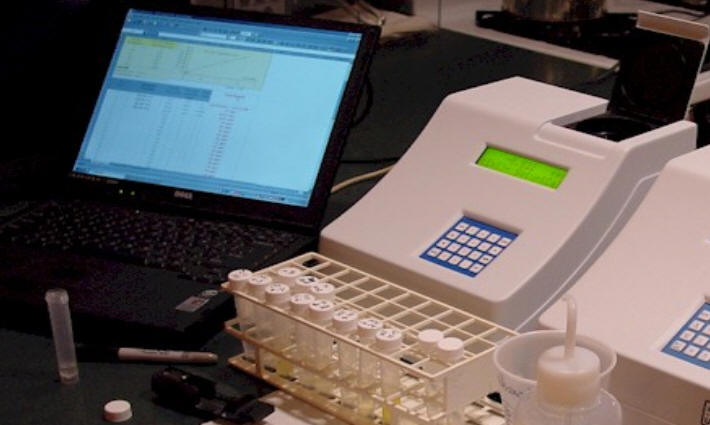

Calibration Kits for Older Sitelab UVF-3100
Models:
|
|
|
|
These products look and function identical to Sitelab's UVF-Trilogy
calibration kits. Includes a
Certificate of Analysis, MSDS and instructions.
Calibration standards are reusable and supplied with a 6-month
expiration date. Available in methanol for soil analysis or hexane
for water analysis.

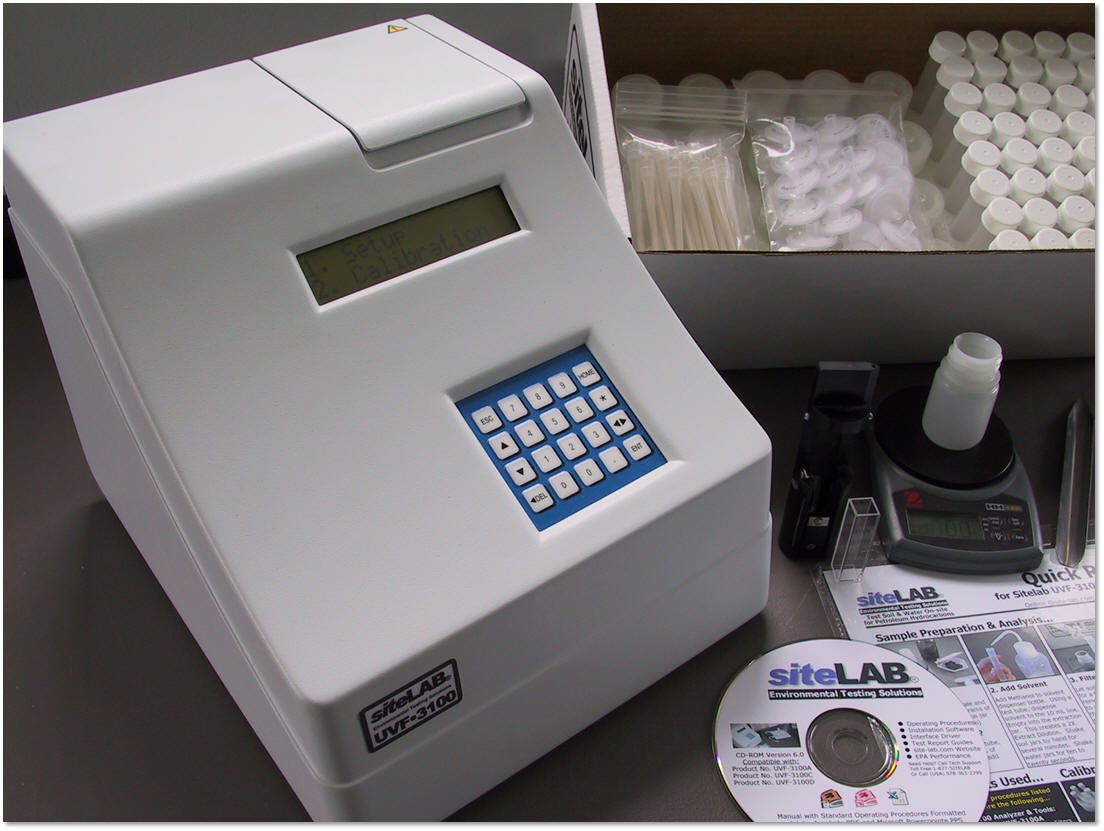

Sitelab's UVF-3100A and UVF-3100D models
were discontinued in 2018 after 20 years in production and replaced
by the newer UVF-Trilogy instrument.
CONTACT US
FOR PRICES OR SALES QUOTE
To purchase UVF-3100 calibration kits and order sample test
kit supplies. We service these instruments too and can
calibrate the analyzer for you.
|
|
GRO Calibration Kits:
CAL-025M-3100
●
In Methanol
CAL-025H-3100
●
In Hexane
EDRO Calibration
Kits:
CAL-042M-3100
●
In Methanol
CAL-042H-3100
●
In Hexane
PAH Calibration Kits:
CAL-060M-3100
●
In Methanol
CAL-060H-3100
●
In Hexane
TPH-Oil Calibration
Kits:
CAL-057M-3100
●
In Methanol
CAL-057H-3100
●
In Hexane
|
|
|
Calibration Standards for
Oil-in-Water (OIW) Monitors
|
|
|
|

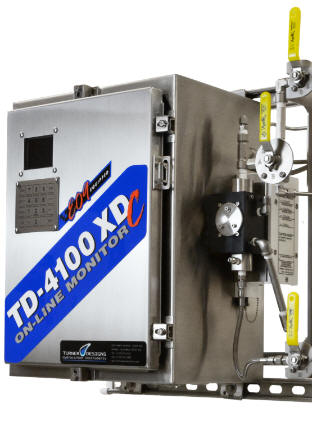

Sitelab provides certified reference standards used to calibrate
TD-4100 and TD-120 oil in water monitors manufactured by Turner
Designs Hydrocarbons Instruments, Inc. (TDHI), now part of Benchmark
Measurement Solutions located in Canada.
The standards
are used to calibrate when the source oil is unknown or not available
and ensure accurate and repeatable measurements.
These
instruments use flourescence to measure water continuously 24/7 without the use of solvent
extraction. Applications include produced water, cooling
water, leak detection, groundwater
treatment and many others.
Products are supplied in methanol and have a 6-month
expiration date. Includes MSDS
and
Certificate of Analysis with instructions.
|
|
OILINWATERMONITORS.COM

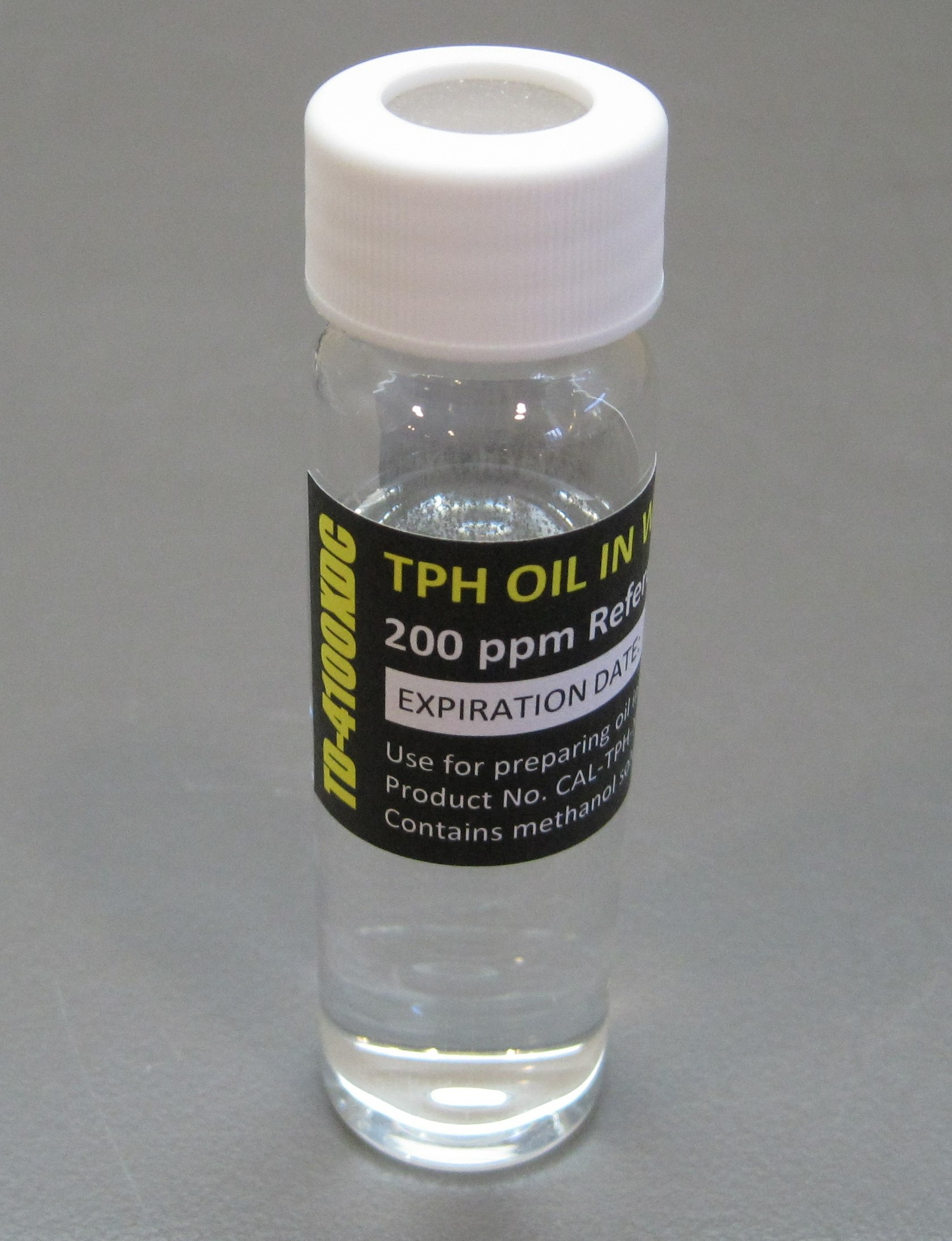

TD-4100 XDC Standards:
CAL-TPH-XDC200
● TPH in Water
CAL-GRO-XDC200
● GRO in Water
TD-4100 XD Standards:
CAL-TPH-XD2000
● TPH in Water
TD-120 Standards:
CAL-TPH-TD120
● TPH in Water
CAL-GRO-TD120
● GRO in Water
|
|
|
Shipping Requirements for
Dangerous Goods
|
|
|
Sitelab's calibration products contain methanol or hexane solvents which are flammable, hazardous
materials. We use Federal Express to ship
these products worldwide, packaged in a small 12"x10"x6"
box and weigh 1 to 2 lbs, depending on the quantity or product
ordered.
Fedex prohibits the shipment
of these products to some countries. Please visit the
FEDEX WEBSITE for
a list of countries served and prohibited.
We do not ship
these products with DHL, UPS or other carriers. Only Fedex
International Priority Service can be used for shipments outside the
United States. Typical delivery is 2 to 5 days depending on
location. |
|
Copies
of Sitelab's Material Safety Data Sheets (MSDS) included with each
product are available upon request.
CONTACT US to
order, get pricing or have questions about which products are most
suitable for your application.
|
|
|
|
|
|
|
|
|
CLICK BELOW FOR ALL SITELAB'S PRODUCTS, TEST
PROCEDURES AND APPLICATIONS
|
|
|

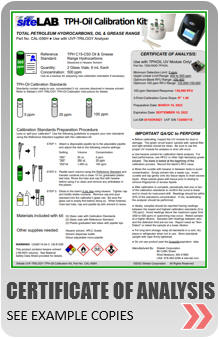

See example copies of COAs included with UVF-Trilogy Calibration
Kits
|
 |
