Sitelab's UVF analyzers are the best on the market for field screening petroleum hydrocarbons.  Our portable UVF-500D and UVF-Trilogy instruments are easy to use and can test a wide range of contaminants providing fast, accurate measurement with detection limits in the low ppm or ppb range.

A full line of sample test kits, calibration kits and other supplies are available to use with the analyzers.
CONTACT US for pricing or to get a sales quote.




UVF-500D Handheld Analyzer:

  See UVF-500D web page...

This instrument is sold online from Obstitech ApS in Denmark

Go To:
UVF-500D Web Page
Popular in the oil and gas market!  This rugged, light weight, low cost instrument is simple to operate.  Use for testing oil in water or soil.  Detects total petroleum hydrocarbons (TPH) in the C15 to C50 oil and grease range.


UVF-500D,
Part No. 50200

Ideal for all types of crude oils and heavy fuel oils.  Performs well compared to U.S. EPA and other regulatory lab test methods.

Includes batteries, cuvette adapter and TPH Solid Standard.  Analyzer is factory calibrated to Sitelab'S TPH-Oil Calibration Kit, Part No. CAL-056H-500D.

Test kits, accessories & other supplies are available.



  UVF-Trilogy Benchtop Analyzers:


   UVF-TRILOGY Analyzer

Need Pricing or Sales Quote?

CONTACT US



Download:
INSTRUMENT SPECIFICATIONS


Download:
TRILOGY OPERATING MANUAL



The UVF-Trilogy is a highly versitile fluorescence instrument and detects a wide range of petroleum contaminants.  The analyzer uses 'snap-in' UV modules, each fitted with LEDs and optical filters sensitive to different types of hydrocarbons.  The UV modules are included in the UVF-Trilogy models listed below or can be purchased separately to add on (see accessories).


UV Modules



Equipment Included

Analyzer features an intuitive touch screen interface and can store up to 18 calibrations in memory.

The equipment is easy to operate.  Use in the field or in the lab.  For best performance, use factory calibrations for testing GRO, DRO, TPH and PAHs.

Glass cuvette, solvent dispenser bottle and other tools needed are included with all models.

Sample test kits and calibration kits sold separately.

UVF-Trilogy rentals are also available!

Scroll down this page and select the analyzer that best suites your
application.  Contact Sitelab Corporation if you needed assistence.


  EDRO Analyzer:



UVF-Trilogy,
EDRO Analyzer



UVF-TRILOGY, MODEL NO. 7200-004-EDRO
FOR: EXTENDED DIESEL RANGE HYDROCARBONS


Download:
7200-004-EDRO, PARTSLIST


UVF-Trilogy analyzer includes EDRO UV module and arrives factory calibrated using Sitelab EDRO standards.  Detects hydrocarbons in the C10-C36 diesel and oil range.  Use for water, soil or oil on metal analysis.



Results compare well to EPA Method 8015M, EPH methods and other laboratory TPH-DRO GC methods.



Ideal for diesel fuel, No. 2 fuel, weathered fuel oils, crude oils, lube oils and most other petroleum contaminants.  Approved for Underground Storage Tank (UST) sites by NC DEQ.







See: EDRO APPLICATIONS

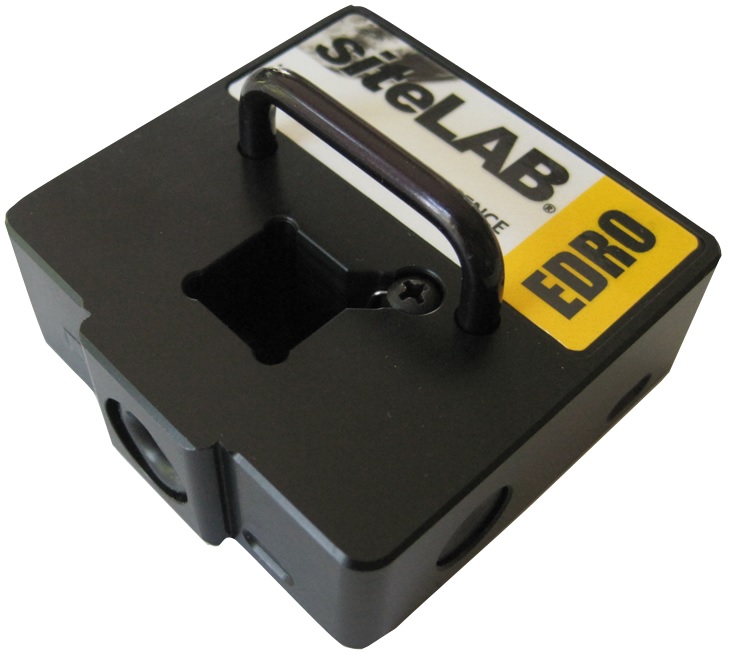

Includes EDRO UV Module:




 GRO Analyzer:



UVF-Trilogy,
GRO Analyzer

UVF-TRILOGY, MODEL NO. 7200-004-GRO
FOR: GASOLINE RANGE HYDROCARBONS


Download:
7200-004-GRO, PARTSLIST

UVF-Trilogy analyzer includes GRO UV module and arrives factory calibrated using Sitelab GRO standards.  Detects BTEX and other volatile petroleum hydrocarbons in the C6-C10 range.  Use for water or soil analysis.



Results compare well to EPA Method 8015, VPH methods and other laboratory TPH-GRO GC methods.



Ideal for gasolines, jet fuels, heating oils, diesel and other light-refined petroleum contaminants.  Approved for Underground Storage Tank (UST) sites by NC DEQ.







See: GRO APPLICATIONS

Includes GRO UV Module:

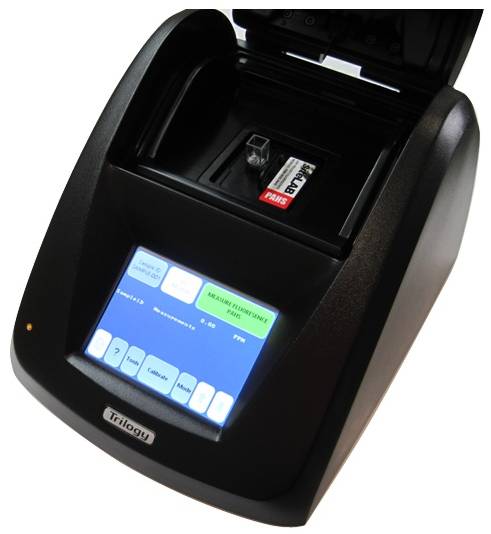

  PAH Analyzer:



UVF-Trilogy,
PAH Analyzer

UVF-TRILOGY, MODEL NO. 7200-004-PAHS
FOR: POLYCYCIC AROMATIC HYDROCARBONS


Download:
7200-004-PAHS, PARTSLIST

UVF-Trilogy analyzer includes PAHS UV module and arrives factory calibrated using Sitelab PAH standards.  Detects 'Target PAHs' in the C10-C22 range.  Use for water or soil analysis.



Results compare well to EPA Method 8270 and other GC/MS test methods as the sum of the 16+ regulated compounds, including Benzo[a]Pyrene.



Ideal for fuel oils, waste oils, asphalts, creosote, coal ash, coal tars and other contaminants high in PAH content.







See: PAH APPLICATIONS

Includes PAHS UV Module:




 TPH Oil Analyzer:



UVF-Trilogy,
TPH Oil Analyzer

UVF-TRILOGY, MODEL NO. 7200-004-TPH
FOR: TPH OIL RANGE HYDROCARBONS


Download:
7200-004-TPH, PARTSLIST

UVF-Trilogy analyzer includes TPHOIL UV module and arrives factory calibrated using Sitelab TPH-Oil standards.  Detects total petroleum hydrocarbons (TPH) in the C15-C50 oil and grease range.  Use for oil in water or oil in soil analysis.



Results compare well to EPA Methods 1664 or 9071B by gravimetric and many TPH GC methods.



Ideal for all types of crude oils and heavy fuel oils.



Performs the same as Sitelab's smaller UVF-500D analyzer, but has lower detection limits.  The module is fitted with a similar UV LED light and optical filters.







See: TPH OIL APPLICATIONS

Incudes TPHOIL UV Module:

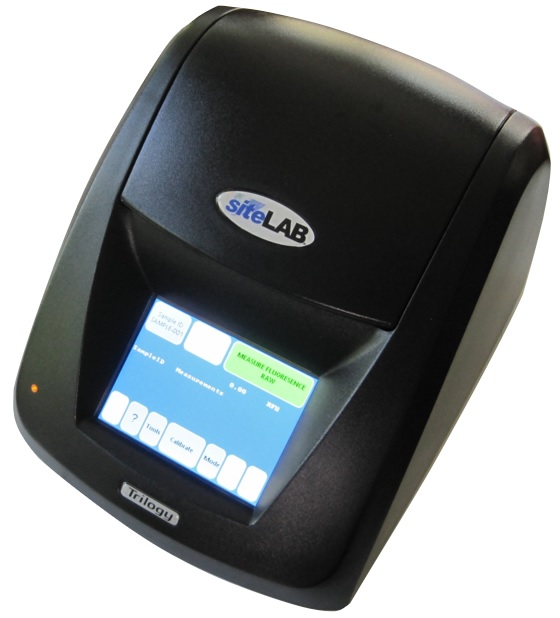

 TPH Fingerprinting Analyzer:



UVF-Trilogy,
TPH Fingerprinting
Analyzer


UVF-TRILOGY, MODEL NO. 7200-004-FNGP
FOR: TPH HYDROCARBON FINGERPRINTING


Download:
7200-004-FNGP, PARTSLIST

Our most advanced model!  UVF-Trilogy analyzer includes four UV modules and eight factory calibrations using Sitelab GRO, EDRO, TPH-Oil and PAH standards.



Test for all types of petroleum hydrocarbons in soil, water, NAPL and more.  See applications for details.



Performs quantitative and qualitative measurements used for TPH fingerprinting and oil forensic analysis.



Helps identify the source or age of petroleum by testing samples for aromatic hydrocarbon content.







See: APPLICATIONS


Incudes all 4 UV Modules with GRO, EDRO, TPH and PAH calibrations:






 Accessories & Rentals Available:

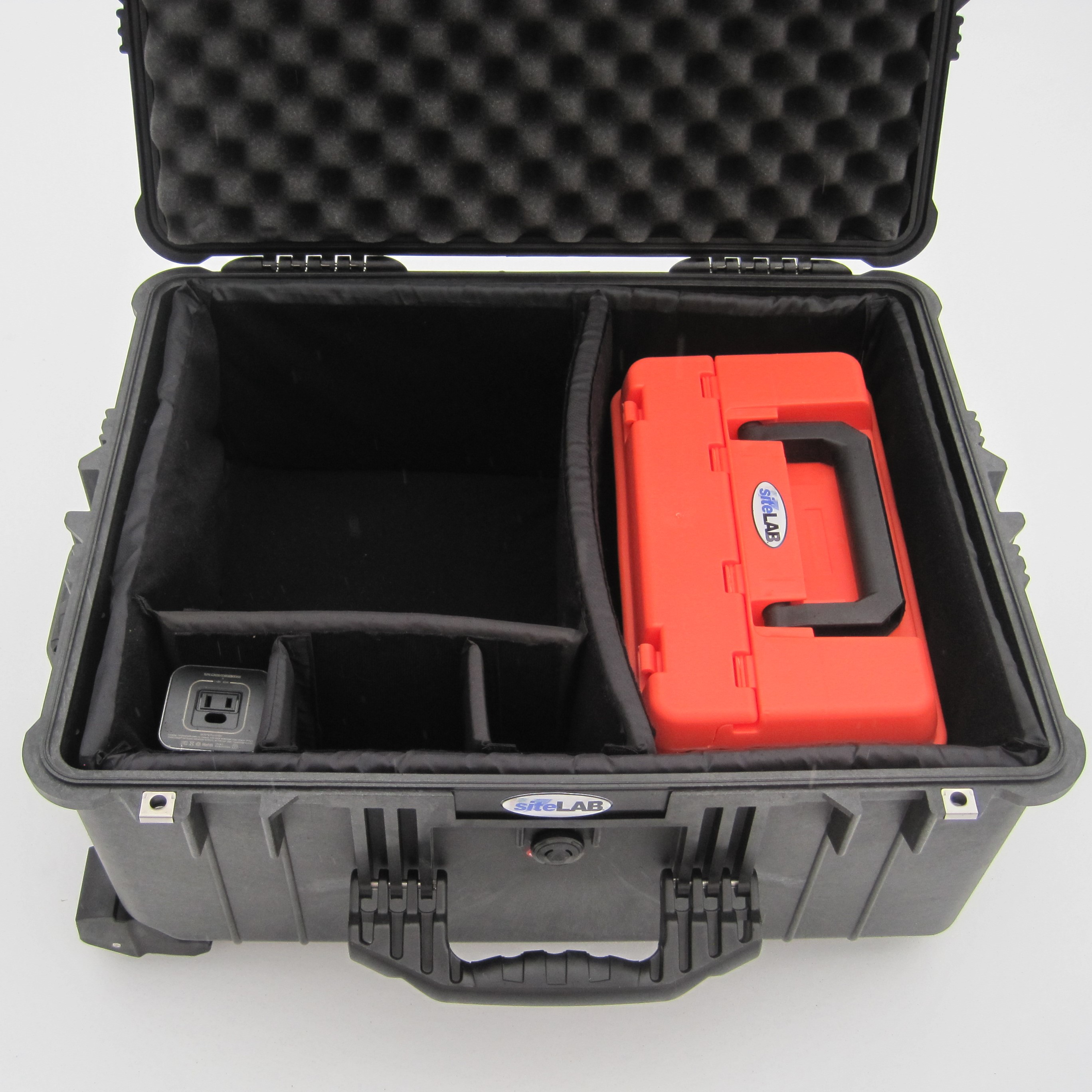

 Analyzer Field Case,
7200-UVFCASE


FIELD CASE WITH PORTABLE BATTERY
Part No. 7200-UVFCASE
For all Trilogy and older UVF-3100 models.


Heavy duty waterproof field case with 120V rechargable battery.  Safely stores UVF analyzer and laboratory equipment for use in the field.




  SITELAB UVF-TRILOGY RENTALS:


We rent and ship worldwide.  Rentals are great for short term projects.  The equipment is easy to use.  Training is available too by phone at no charge.

CONTACT US to get a sales quote or make a reservation.  See rates below:

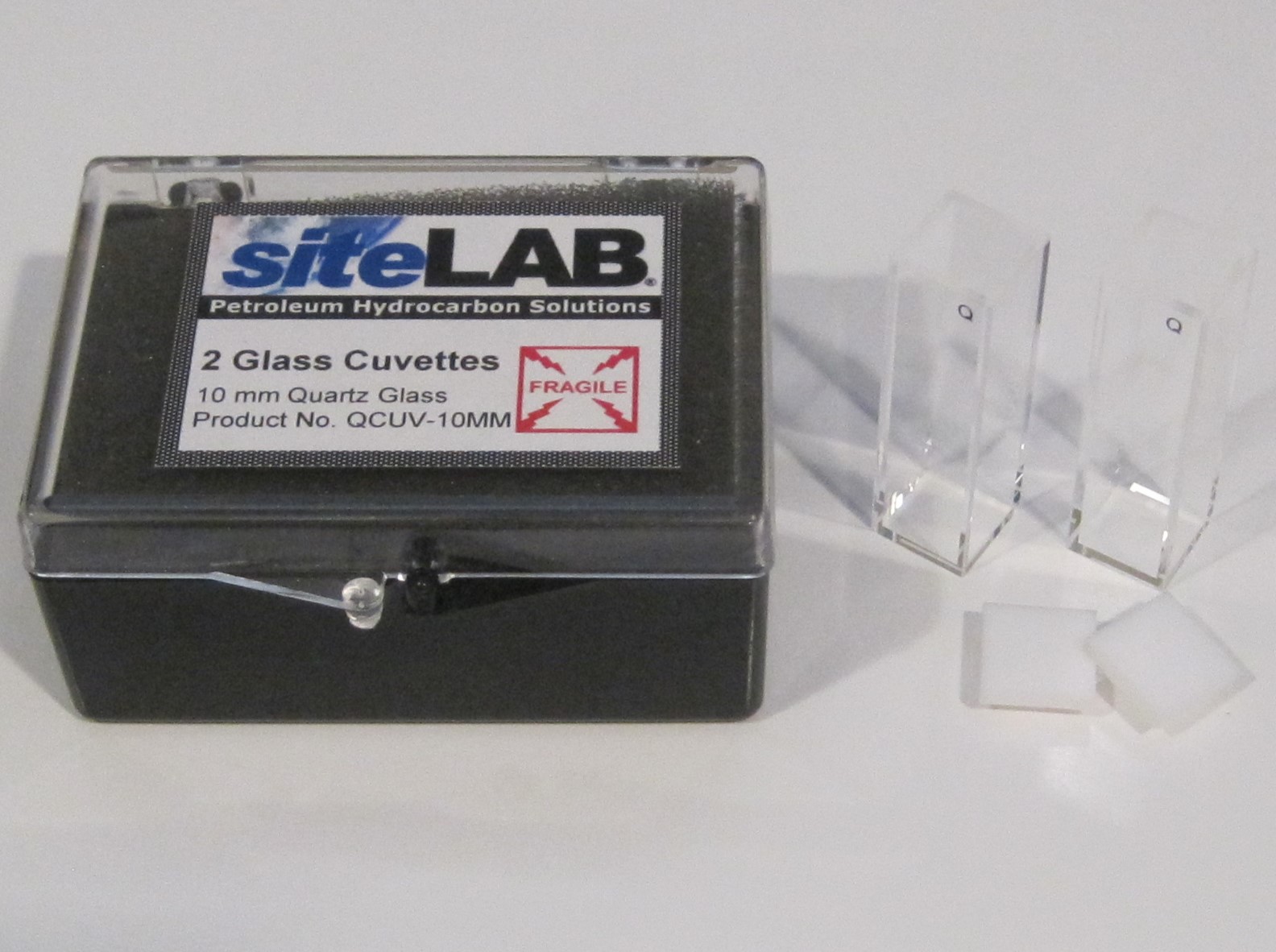

Glass Cuvettes,
QCUV-10MM
SPARE/REPLACEMENT GLASS CUVETTES
Part No. QCUV-10MM
For all Trilogy and older UVF-3100 models.


Includes two square quartz cuvettes with case.  Use if original cuvette supplied with analyer is lost or broken.






7200-004-BTEX


7200-004-EDRO


7200-004-PAHS


7200-004-TPHOIL


UV FLUORESCENCE MODULES


Purchase UV modules to add on or upgrade your Trilogy to perform other tests and applications as needed.  Analyzer can be factory calibrated using Sitelab's calibration standards when ordering a new instrument or to have your current instrument serviced.

UV Module Part No.
7200-004-BTEX.  Use for GRO Analysis
7200-004-EDRO.  Use for EDRO Analysis
7200-004-PAHS.  Use for PAH Analysis
7200-004-TPHOIL.  Use for TPH Oil Analysis

For UST or other TPH sites where gasoline range and diesel range organics are required, the GRO and EDRO UV modules must be used.  Results in samples are typically added together to report TPH concentration.

Sitelab's UV modules are maintanance free.  These products do not include calibration standards.  Sitelab's calibration kits are sold separately.



Test Supplies for UVF-Trilogy Analyzers:








UVF Analyzer Instrument Specifications:
